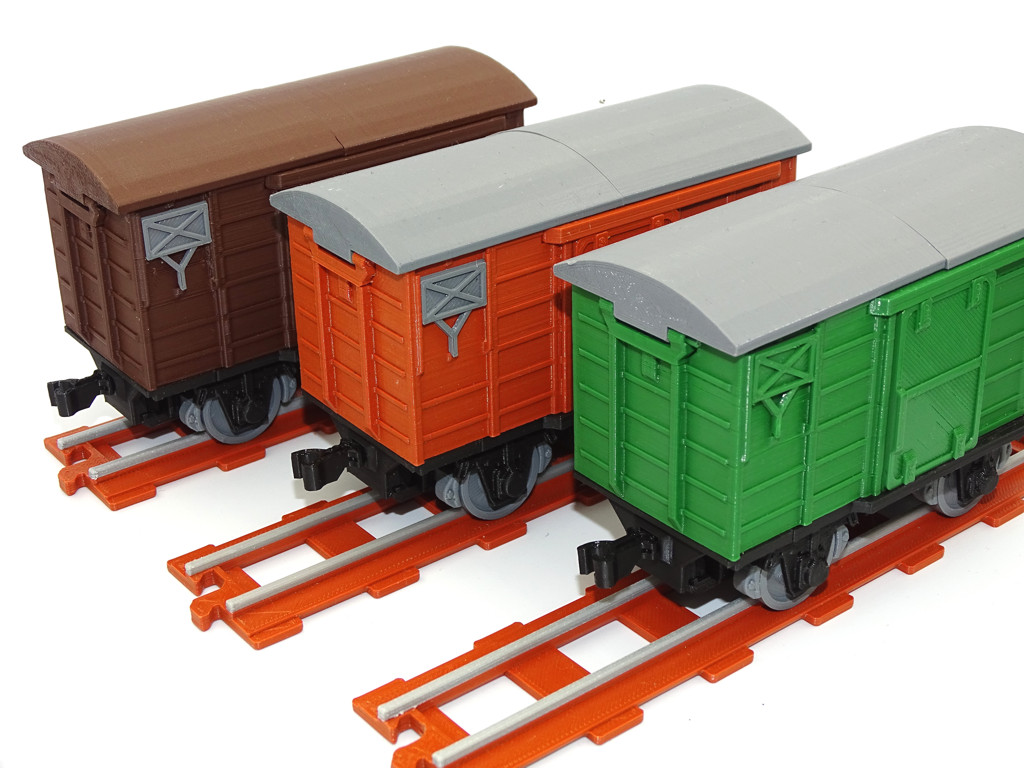

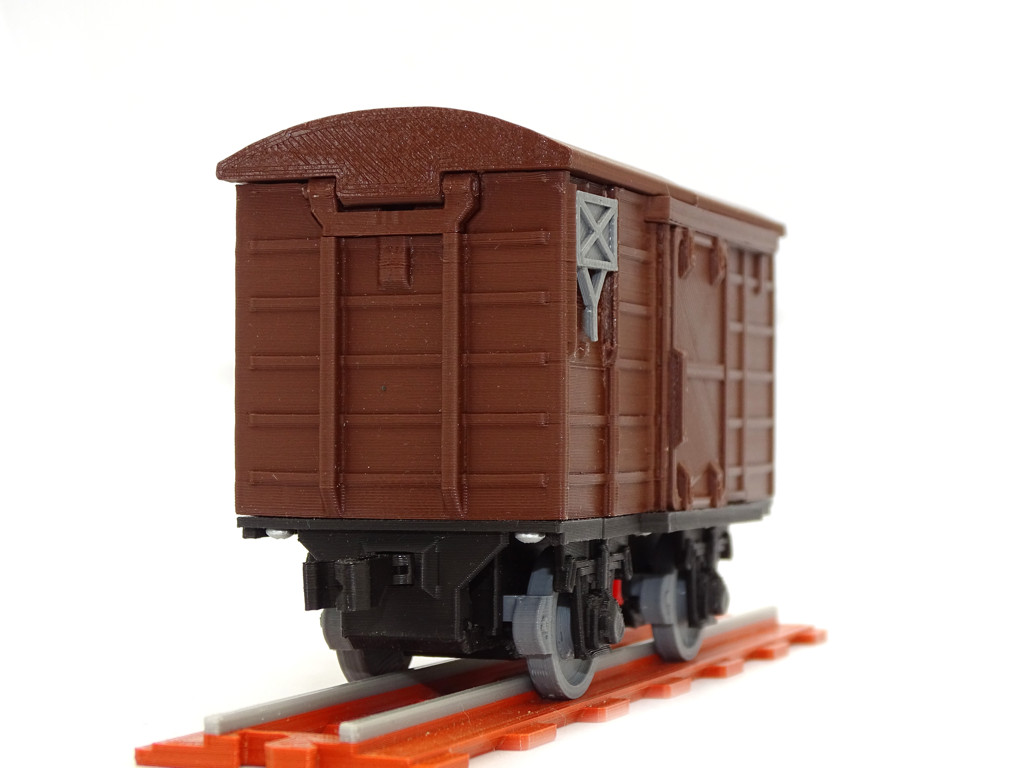

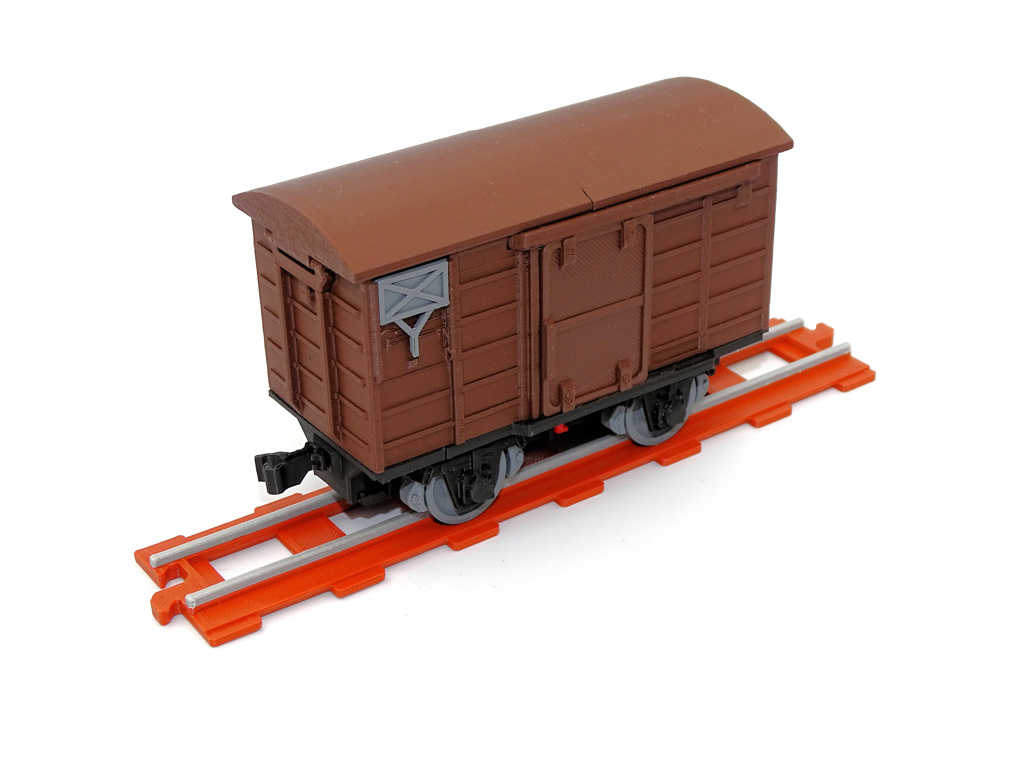

Covered wagon

Covered wagon - Assembly manual

Needed parts or materials (suggested, you can use other matches parts)

• 24 pieces M2.2x6.5 screw (DIN7981),
• several short pieces of filament 1.75 mm for hinges,
• cyanoacrylate glue (not essential but may be needed to glue the wheels to the axles).

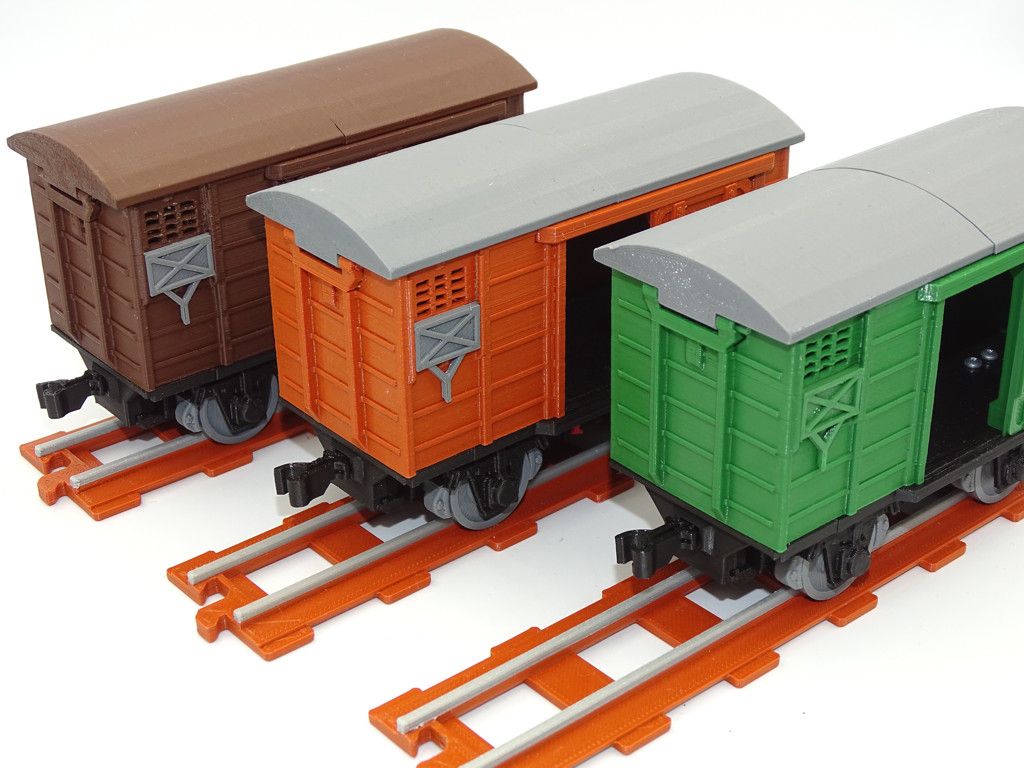

Wagon load

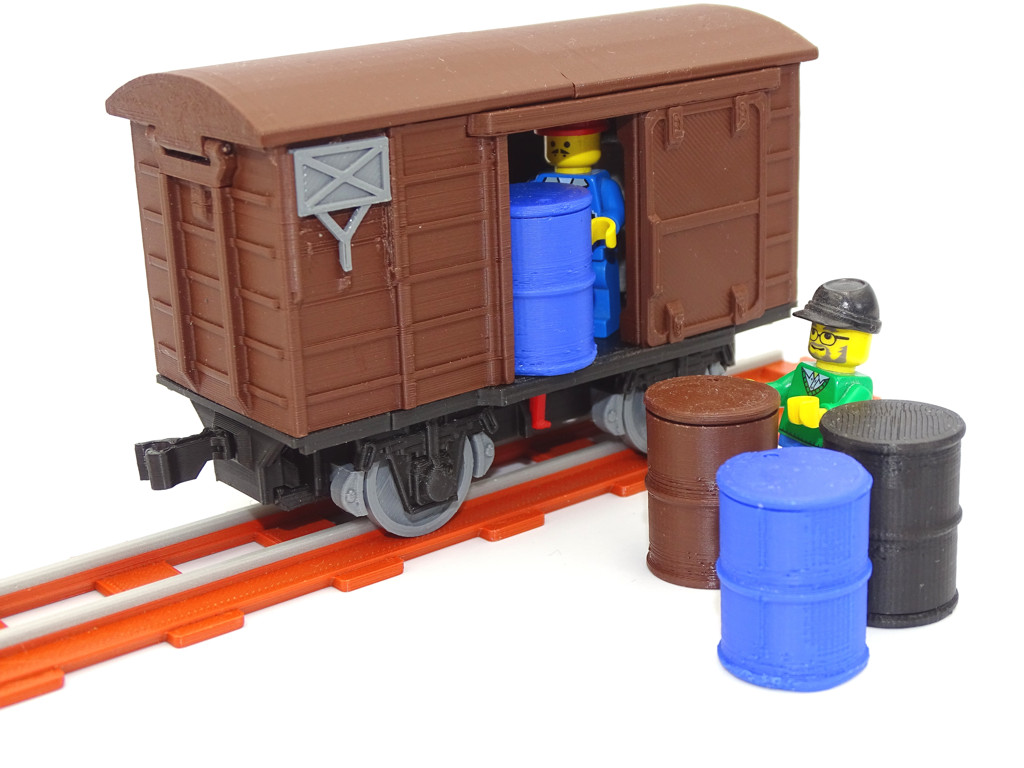

As a load for the coal wagon, you can use:

• our a free load of metal barrels ,
• other elements, according to your own ideas.

3D printing

• We recommend using PLA filament, nozzle 0.4 mm and layer height 0.2 mm, but you can test other settings.
• All files are in print-ready positions, you don't have to rotate it on your slicer.
• The elements are easy to print and do not require the use of supports, brims or rafts (the only exception is axle.stl, which prints vertically, and for this we recommend a small brim).
• Print all elements with 100% filling (the wagon runs better if it is a little heavier, the differences in time and filament consumption when printing with a small filling are not significant).

Assembling of parts

• The sizes of the wheels and axles should match, but if they are too loose, try to stick them with glue. You can also slightly chamfer the ends of the axle with a regular sharpener.
  If the axle is too thick, you can gently sand the hole in the wheel or you can very gently change the scale of the axle.stl file when cutting in a slicer (change the scale of the element only for horizontal, the vertical scale should remain at 1:1). We have designed a special wheel and axle assembly tool, you can print it and use it to make your work easier.
• If the handbrake lever gets stuck frequently, you can sand the surface it is in contact with. In addition, you can shorten the lever element a little where it contacts the brakes.

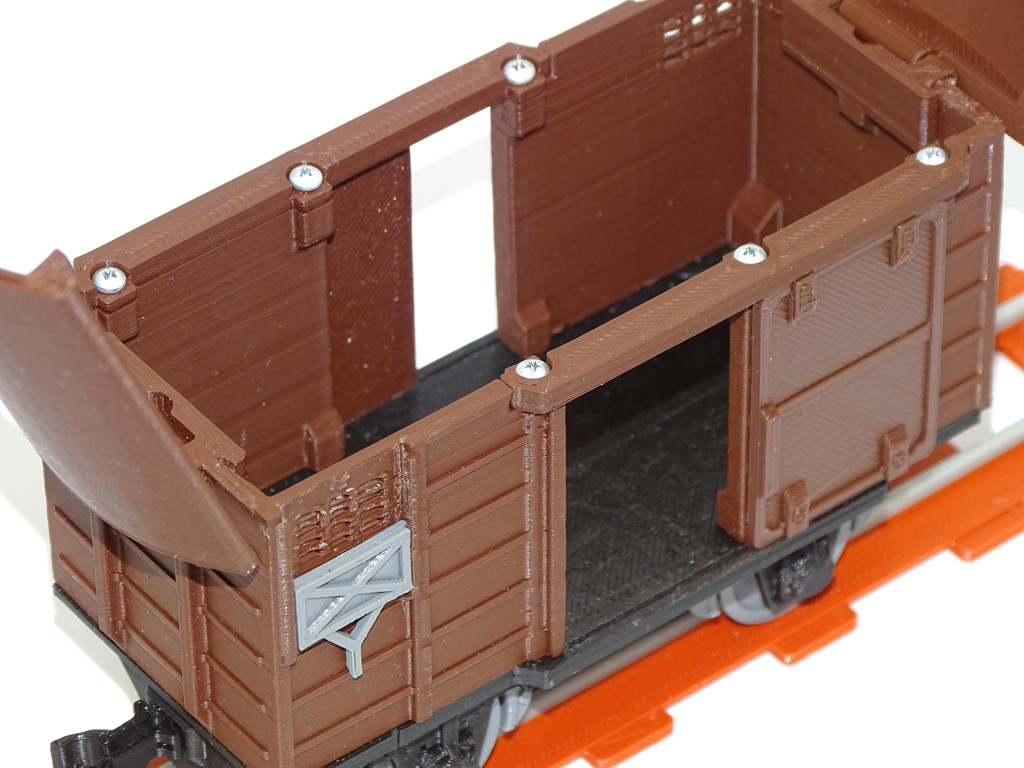

• Use pieces of filament 1.75 mm to attach roof.

Maintenance

The axles of locomotives and wagons are plastic, so after long-term use, the vehicles may experience greater resistance and may creak while driving. To extend the time of trouble-free operation, we recommend lightly lubricating the axle with Teflon grease.

Backward compatibility

On June 26, 2022, due to the adaptation of trains to run on rails, the method of mounting couplers was changed. If you have models downloaded before this date, you can print and install the new version of the coupler-automatic.stl and coupler-automatic-cotter.stl files should be printed and installed in older wagons. (files are available in the free locomotive model). You can also turn all couplers on older cars upside down, but this is not recommended - trains running on the tracks will not fit well into the turns.

Assembly manual movie

Click to see assembly manual on Youtube.
You can pause the movie and skip frames using "<" and ">" buttons from your keyboard.

License

After purchase files you can:

• print an unlimited number of models,
• modify and print modified files,
• print models for a gift,
• use printed models for free education.

You can not:

• use models for earn money,
• sell printed models,
• sell any stl files (original or modified),
• publish or distribute any stl files.
