3D-printed Railway bridges

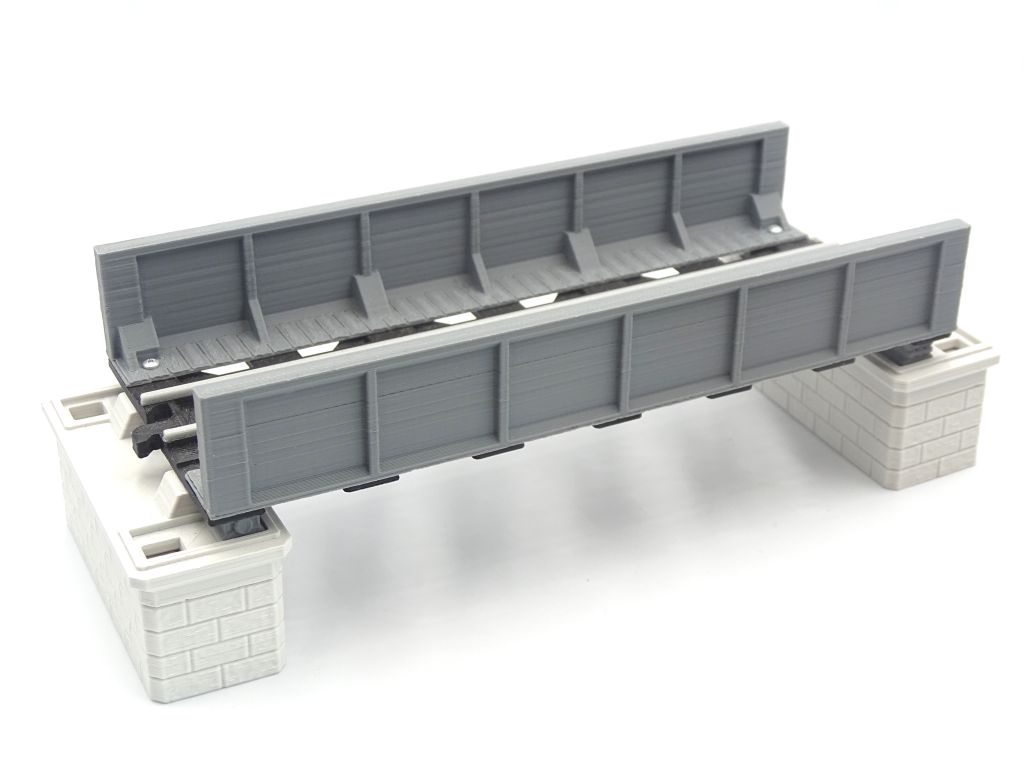

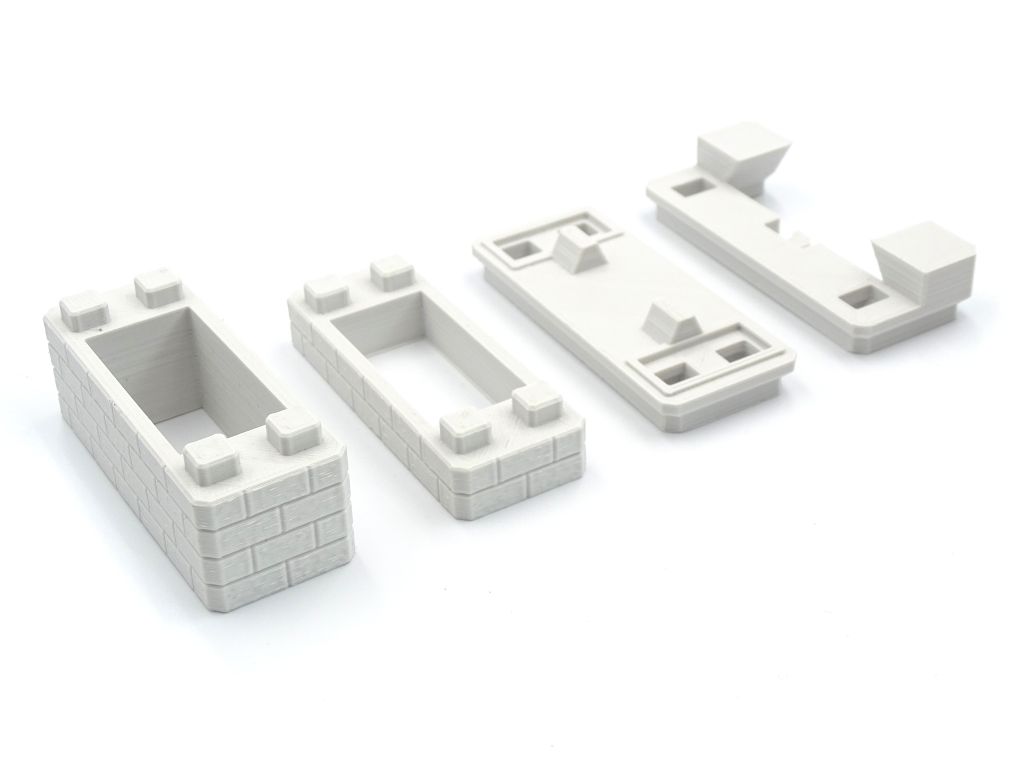

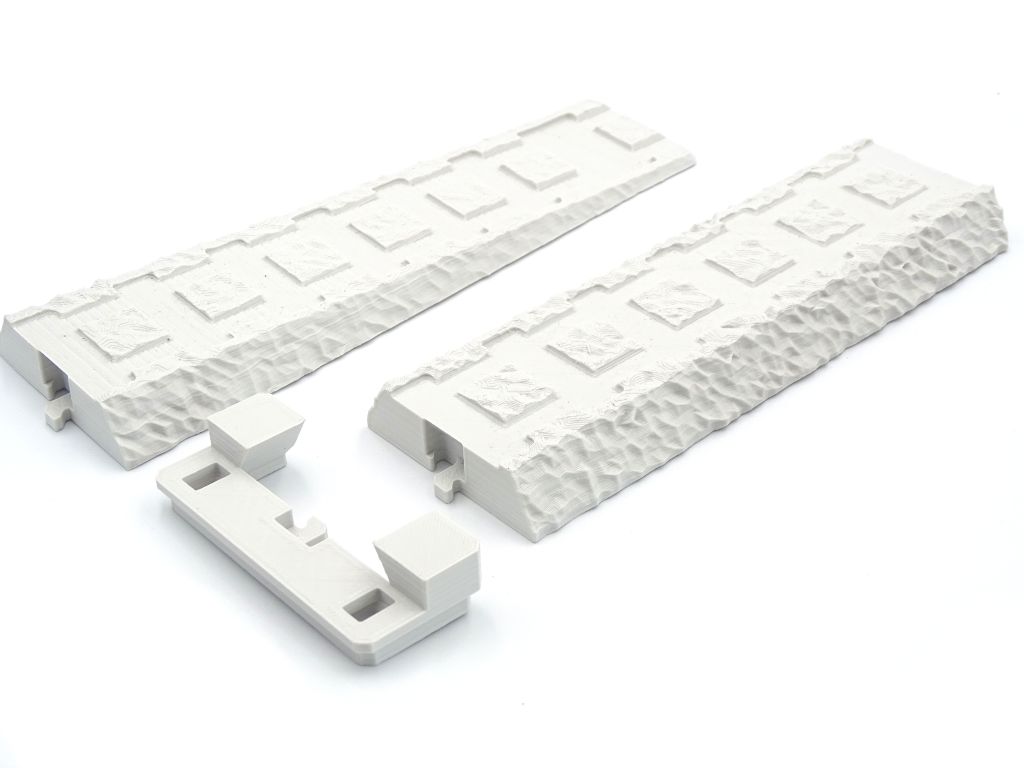

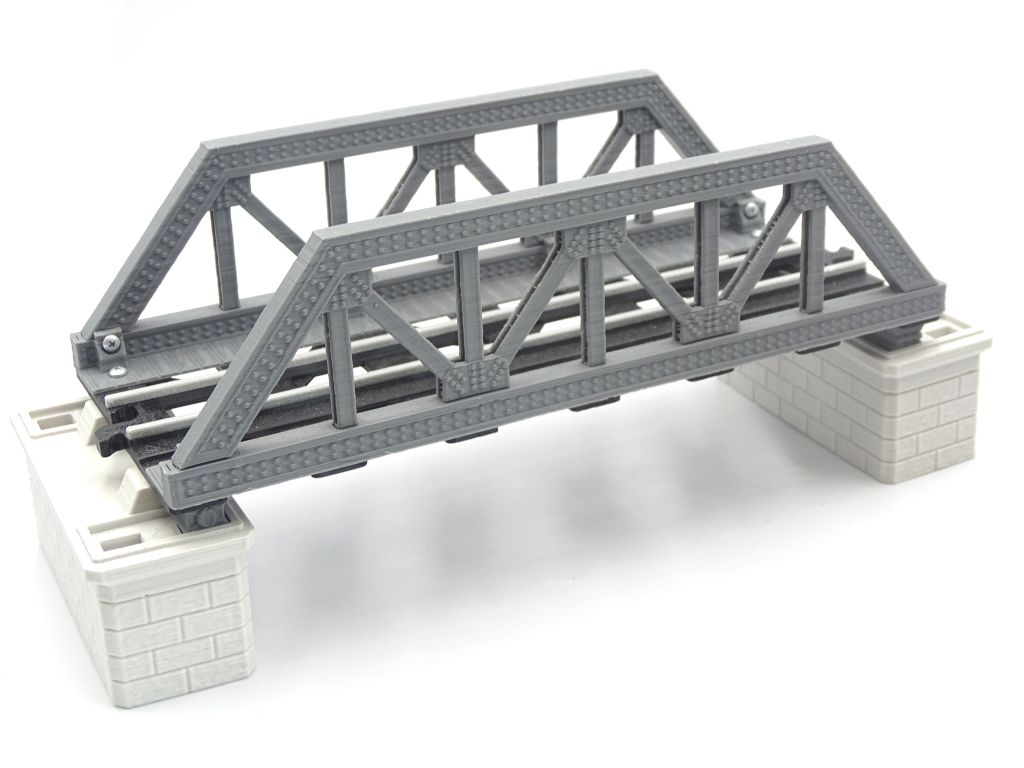

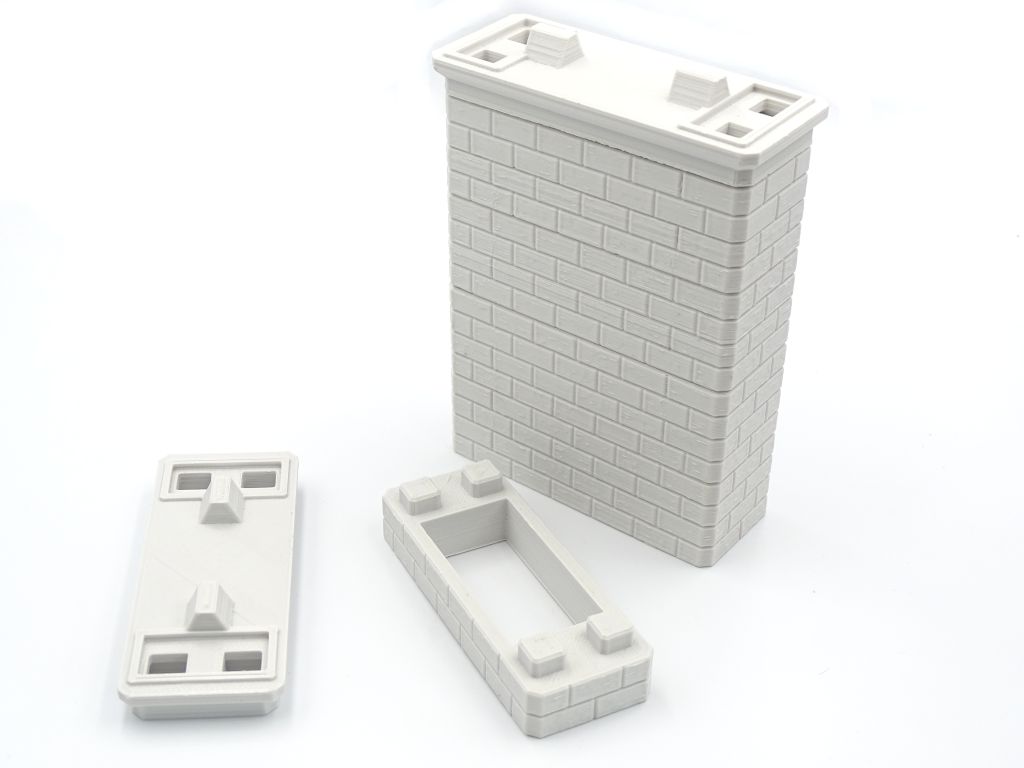

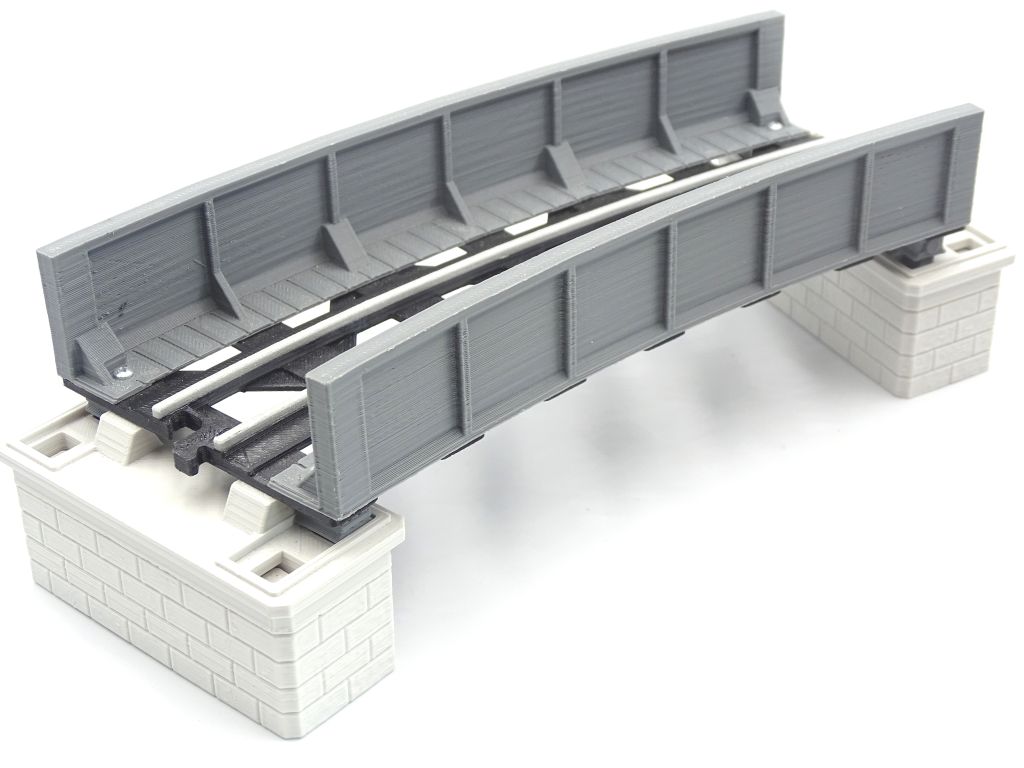

A set of three models of bridges: truss, plate girder and curved plate girder bridge, modular pillars and a railway embankment with an approach ramp and bridge abutments.

Click and get free Railway bridges files!

FREE download stl files!


Railway bridges - Assembly manual

Needed parts or materials (suggested, you can use other matches parts)
  • 8 pieces M2.2x6.5 screw (DIN7981) for one plate girder bridge segment, 16 pieces for a truss bridge segment.
Printing
  • We recommend using PLA filaments, 0.4 mm nozzle and 0.2 mm layer height, but you can test other settings as well.
  • All elements are placed in print-ready positions, you don't need to rotate them in your slicer.
  • Elements are easy to print and do not require the use of supports, brims or rafts.
  • Print all tracks and pillars with 25% fill, bridge parts with 100% infill, but if you like you can try other settings. You can print embankments with a much lower infill, e.g. 10%.
  • If the tracks do not fit on your printer table, rotate them diagonally. This can help with longer items.
Printing in two colors
  • If your printer allows you to change the filament during printing, you can make rails of a different color.
  • The height at which you should change the filament is 4.1 mm (0.165 in) or more.
  • In your slicer, check which layer only the rails will remain on, and if your printer supports the M600 command, you can put it in gcode after this layer.
  • Remember or write down the number of the layer on which you want to change the color of the filament. This will be useful for printing all other tracks.
Fitting of track connections
  • The model is protected against the presence of the "elephant foot", but this error that most often causes problems when connecting the tracks correctly. To avoid problems, first of all try to level the bed correctly.
  • If the track joints do not fit together, try to file them down gently with a file or trim the disturbing edges with a small knife.

Assembly manual movie

Click to see assembly manual on Youtube.
You can pause the movie and skip frames using "<" and ">" buttons from your keyboard.

License

This model is free to use.

You can:
  • print an unlimited number of models,
  • modify and print modified files,
  • print models for a gift,
  • use printed models for free education.
You can not:
  • use models for earn money,
  • sell printed models,
  • sell any stl files (original or modified),
  • publish or distribute any stl files.
